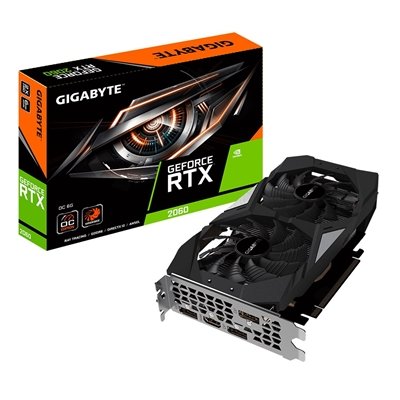

Gigabyte Nvidia GeForce RTX 2060 OC 6GB Dual Fan Graphics Card

grgig-n206oc6-lg

Gigabyte Nvidia GeForce RTX 2060 OC 6GB Dual Fan Graphics Card

£410.19

  • Chipset Manufacturer: Nvidia
  • Chipset Series: GeForce RTX20xx
  • Chipset: RTX2060
  • Form Factor: 2x ATX
  • Memory: 6GB
  • Fans: 2
  • RGB: No
  • EAN: N/AAvailability: Out of stock SKU: 1MB71122926 Categories: , ,

    Description

    Powered by GeForce RTX 2060
    Integrated with 6GB GDDR6 192-bit memory interface
    WINDFORCE 2X Cooling System with alternate spinning fans
    90mm unique blade fans
    Protection back plate

    1755 MHz (Reference card: 1680 MHz)

    WINDFORCE 2X COOLING SYSTEM
    WINDFORCE 2X cooling system features 2x 90mm unique blade fans, alternate spinning fan, 2 composite copper heat pipes direct touch GPU and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.

    ALTERNATE SPINNING
    The GIGABYTE patent Alternate Spinning is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

    UNIQUE BLADE FAN
    The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.

    3D ACTIVE FAN
    The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

    HEAT PIPES DIRECT TOUCH
    The shape of the pure copper heat pipes maximize the direct contact area with the GPU, enhancing heat transfer. The heat pipes also cover the VRAM through a large metal plate contact to ensure proper cooling.

    COMPOSITE HEAT-PIPES
    The composite heat-pipes combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.

    EXTREME DURABILITY AND OVERCLOCKING
    The graphics card uses the 4+2 power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.

    PROTECTION BACK PLATE
    The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

    AORUS ENGINE
    The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your games requirements.

    Specifications

    Graphics Processing
    GeForce RTX 2060

    Core Clock
    1755 MHz (Reference card: 1680 MHz)

    RTX-OPS
    38

    CUDA Cores
    1920

    Memory Clock
    14000 MHz

    Memory Size
    6 GB

    Memory Type
    GDDR6

    Memory Bus
    192 bit

    Memory Bandwidth (GB/sec)
    336 GB/s

    Card Bus
    PCI-E 3.0 x 16

    Digital Max Resolution
    7680×4320@60Hz

    Multi-View
    4

    Card Size
    L=225.65 W=122.02 H=40.5 mm

    PCB Form
    ATX

    DirectX
    12

    OpenGL
    4.5

    Recommended PSU
    500W

    Power Connectors
    8 Pin*1

    Output
    DisplayPort 1.4 *3
    HDMI 2.0b *1

    SLI Support
    No

    Accessories
    1. Quick guide
    2. Driver CD

    Additional information

    Weight 0.857 kg
